SE SUPER THIN CHUCKS

Brand Name : NTH

Model Number : SE-02,SE-03,SE-04,SE-05,SE-06,

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : T/T, Western Union

Delivery Time : 3 work days

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : SE SUPER THIN CHUCKS

Material : Cast steel

Usage : fixture/Gripping

Feature : High precision/Stable/High quality

Size : Refer to the specification

Service : ODM/OEM is accpetable

Contact Now

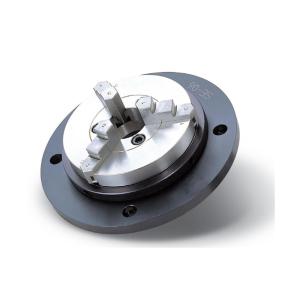

SE SUPER THIN CHUCKS

SUPER THIN CHUCKS
1.By the compactness comes fro"Light Thin,Short,Small"designung concept;the chucks are most fitting to hold work pieces for measuring.
2.Just rotate the chuck knob diectly for gripping and loosening,A handle is not necessary to be used.
3.Chuck body is made of very durable steel.
4.Jaws can be reversibly used; gripping of various sizes becomes much convenient.
5.2"chucks can even grip up to the smallent size of 0.08mm

SE SUPER THIN CHUCKS

Specification UNIT:mm

MODEL/SPEC	O.D.Clamping Range mm	I.D.Clamping Range mm	Weight kg
SE-02	Ø0.8-Ø63	Ø23-Ø58	1.2
SE-03	Ø1-Ø81	Ø31-Ø70	2.9
SE-04	Ø1-Ø100	Ø36-Ø90	4.3
SE-05	Ø1.5-Ø116	Ø43-Ø106	6.2
SE-06	Ø1.5-Ø160	Ø52-Ø148	11.1

MODEL/SPEC	A	B	C	D	E	F	G	H	J	K	L	M
SE-02	63	28	118	100	16	4	4-M5x0.8P	27	8	13	8	26
SE-03	85	37	143	116	20	4	4-M6x1P	35	11	15	10.5	32
SE-04	110	39	168	140	26	5	4-M6x1P	42	14	19	10	40
SE-05	130	45	202	168	32	6	4-M8x1.25P	50	16	21	11.5	49
SE-06	160	52	248	208	50	8	4-M10x1.5P	65	19	26	15	70

Subject to technology changes without prior information
Non-standard requirements can be made
